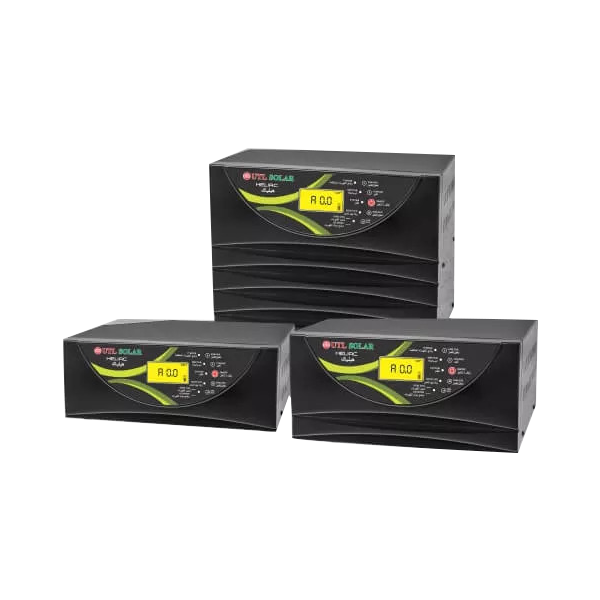

UTL Heliac Solar Inverter 4000 – 60A48V
Save ₹10822Original price was: ₹33,464.00.₹22,642.00Current price is: ₹22,642.00.
Heliac Solar Inverter 60A/48V is a solar hybrid inverter which utilizes both the Solar Power and Grid Power to charge the batteries with giving priority to solar power. Solar power is of the first priority while charging. This means that when Solar power is available, the batteries will be charged with it only, irrespective of whether Grid power is available or not. It is designed to give you the maximum advantages from the Sun and thereby reduces your Electricity costs.
Description
| Particulars | Description |
| System Rating | 3550/60A |
| Capacity | 3500VA |
| Operating DC Voltage | 48V |
| Nominal Grid Voltage | 230V |
| Battery Low Buzzer | 10.8V |
| Battery Low Cut | 10.5V |
| Battery High Cut | 16.5V |
| Grid Charging Voltage (Equalize) | After 30Days |
| Grid Charging Current | 12A/15A |
| Grid Reconnect @ Battery Voltage | 11.8V |
| Output Phase | 1 Phase |
| Nominal Output Voltage | 220V±8% |
| Max. Output Current | 10.0A |
| Nominal Frequency | 50Hz±1% |
| Output Waveform | Sine wave |
| Typical Efficiency | 0.85 |
| Maximum PV Power Recommended | (315W/320W/325W)x10 |
| Solar current max | 60A |
| Solar current min | >3A (Below 3A, System will act like Solar Absent) |
| Protection | Overload, Battery Low, Battery High, Output Short, Battery Reverse, Over Heat, Over frequency, Under Frequency, SPV High. |
| LED Indication | System ON, (IT Mode, SMF/TUB, Boost Chg., DG Mode, Grid Chg.) Enable/Disable. |
| Switches | Reset for System ON/OFF, UP, Down, Back, Enter(For LCD Calibration) |
| Standard Compliance | IP20 |
| Weight | 40Kg |
| Dimension L x W x H | 450x340x385 mm |
